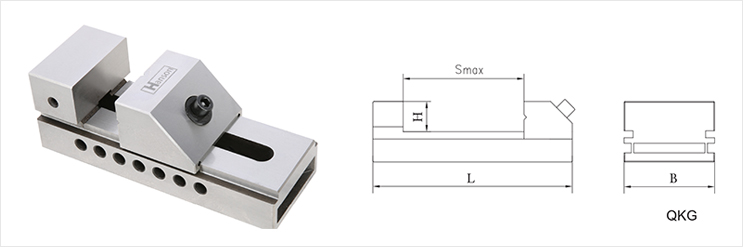

QKG PRECISION VICE
Parallelism: 0.005mm/100mm
Squareness: 0.005mm
Order code
3140- |
Width of jaw B
(mm ) |
Height of jaw H
(mm ) |
Max opening S
(mm) |
Length of vice L
(mm) |
| 5026 |
26 |
9.15 |
22 |
64.5 |
| 5036 |
36 |
20 |
40 |
100 |
| 5038 |
38 |
20 |
44 |
105 |
| 5050 |
50 |
25 |
65 |
140 |
| 5063 |
63 |
32 |
85 |
175 |
| 5073 |
73 |
35 |
100 |
190 |
| 5080 |
80 |
40 |
100 |
200 |
| 5088 |
88 |
40 |
125 |
235 |
| 5100 |
100 |
45 |
125 |
245 |
| 5125 |
125 |
50 |
160 |
285 |
| 5150 |
150 |
50 |
200 |
330 |
| 5151 |
150 |
50 |
250 |
380 |
| 5152 |
150 |
50 |
300 |
430 |
Order code
3140- |
Width of jaw B
(inches ) |
Height of jaw H
(inches ) |
Max opening S
(inches ) |
Length of vice L
(inches ) |
| 5026 |
1" |
0.36" |
0.87" |
2.54" |
| 5036 |
1.4" |
0.79" |
1.57" |
4" |
| 5038 |
1.5" |
0.79" |
1.73" |
4.13" |
| 5050 |
2" |
1" |
2.56" |
5.51" |
| 5063 |
2.5" |
1.26" |
3.35" |
6.89" |
| 5073 |
3" |
1.38" |
4" |
7.48" |
| 5080 |
3" |
1.57" |
4" |
8" |
| 5088 |
3.5" |
1.57" |
4.92" |
9.25" |
| 5100 |
4" |
1.77" |
4.92" |
9.65" |
| 5125 |
5" |
2" |
6.3" |
11.22" |
| 5150 |
6" |
2" |
7.87" |
13" |
| 5151 |
6" |
2" |
9.84" |
15" |
| 5152 |
6" |
2" |
11.8" |
16.9" |
|
