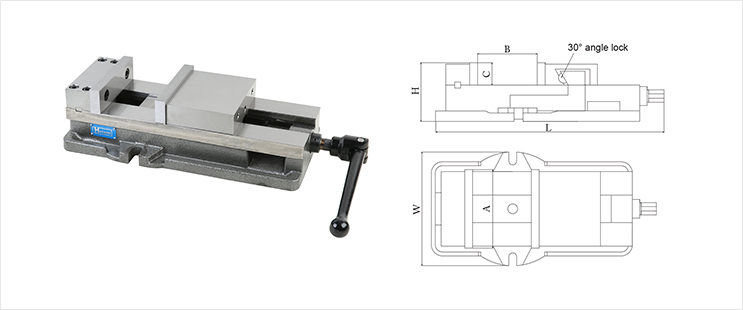

ANGLE TYPE MACHINE VICE

Parallism:0.01/100mm
Squareness:0.02mm
Flatness:0.02/100mm

Order code
3140-		 Width of jaw A
(mm)		 Max opening B
(mm)		 Height of jaw C
(mm)		 Length of vice L
(mm)		 Width of vice W
(mm)		 Height of vice H
(mm)		 Packing
(cm)		 G.W/N.W.
(kg)
5104 152 230 45 496 234 118 52X32X21 34/33

Order code
3140-		 Width of jaw A
(inches )		 Max opening B
(inches )		 Height of jaw C
(inches )		 Length of vice L
(inches )		 Width of vice W
(inches )		 Height of vice H
(inches )
5104 6" 9" 1.77" 19.53" 9.21" 4.65"
