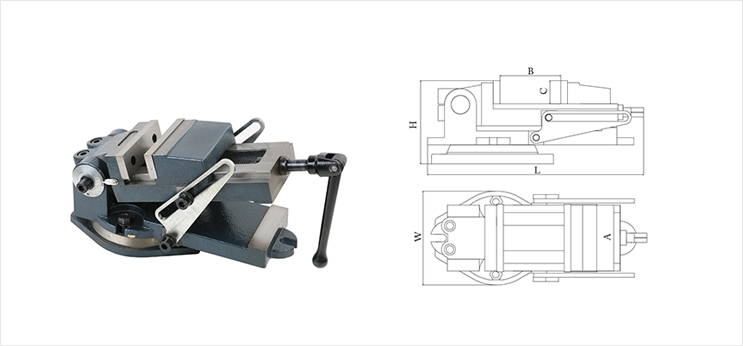

PRECISION SINE VICE

Swivel range: 360^o around Base
Tilting range: 45^o vertical

Order code 3141-	Width of jaw A (mm)	Max opening B (mm)	Height of jaw C (mm)	Length of vice L (mm)	Width of vice W (mm)	Height of vice H (mm)	Packing (cm)	G.W/N.W (kg)
1104	160	160	50	520	210	195	70x21x20	53/50

Order code 3141-	Width of jaw A (inches)	Max opening B (inches)	Height of jaw C (inches)	Length of vice L (inches)	Width of vice W (inches)	Height of vice H (inches)
1104	6"	6"	2"	20.5"	8.3"	7.7"
