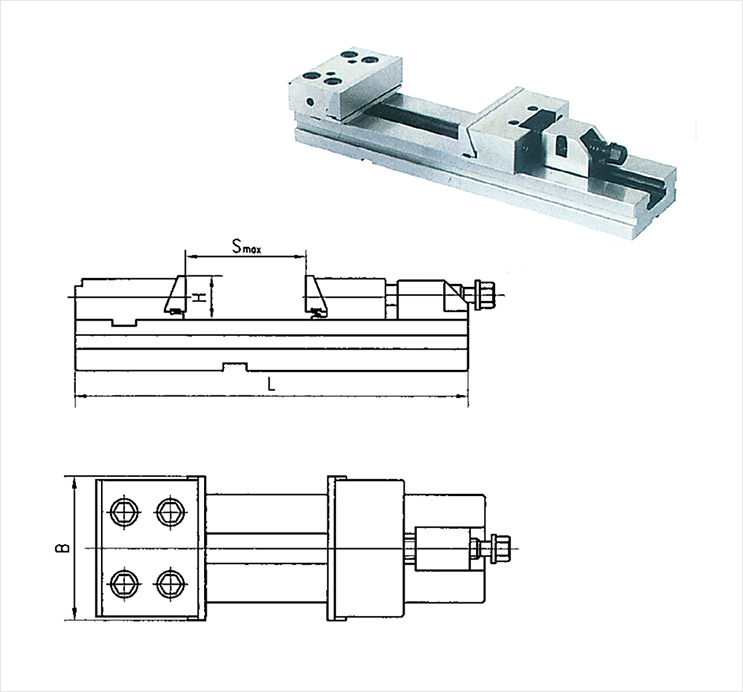

PRECISION MODULAR VICES
Parallism:0.005/100mm
Squareness: 0.005mm
MAIN ATTACHMENT OF MODULAR VISES
- Box wrench 1pc
- T-wrench 1pc
- Clamping board 4pcs
- Work stop with Main Bolt 1 set(4 pcs included)
- Key Nut 1 set(2 pcs included)
Order code
3040- |
Width of jaw B
(mm ) |
Height of jaw H
(mm ) |
Max opening S
(mm) |
Length of vice L
(mm) |
Clamping
force(kg) |
| 1240 |
100 |
30 |
100 |
270 |
3000 |
| 1250 |
125 |
40 |
150 |
345 |
3000 |
| 1260 |
150 |
50 |
200 |
420 |
5000 |
| 1261 |
150 |
50 |
300 |
520 |
5000 |
| 1270 |
175 |
60 |
200 |
455 |
6000 |
| 1271 |
175 |
60 |
300 |
555 |
6000 |
| 1272 |
175 |
60 |
400 |
655 |
6000 |
| 1273 |
175 |
60 |
500 |
755 |
6000 |
| 1274 |
175 |
60 |
600 |
855 |
6000 |
| 1280 |
200 |
65 |
200 |
495 |
10000 |
| 1281 |
200 |
65 |
300 |
595 |
10000 |
| 1282 |
200 |
65 |
400 |
695 |
10000 |
| 1283 |
200 |
65 |
500 |
795 |
10000 |
| 1284 |
200 |
65 |
600 |
895 |
10000 |
| 1320 |
300 |
80 |
200 |
535 |
12000 |
| 1321 |
300 |
80 |
300 |
635 |
12000 |
| 1322 |
300 |
80 |
400 |
735 |
12000 |
| 1323 |
300 |
80 |
500 |
835 |
12000 |
| 1324 |
300 |
80 |
600 |
935 |
12000 |
| 1325 |
300 |
80 |
700 |
1035 |
12000 |
| 1326 |
300 |
80 |
800 |
1135 |
12000 |
Order code
3040- |
Width of jaw B
(inches ) |
Height of jaw H
(inches ) |
Max opening S
(inches ) |
Length of vice L
(inches ) |
| 1240 |
4" |
1.2" |
4" |
10.6" |
| 1250 |
5" |
1.6" |
6" |
13.6" |
| 1260 |
6" |
2" |
8" |
16.4" |
| 1261 |
6" |
2" |
12" |
20.5" |
| 1270 |
7" |
2.4" |
8" |
18" |
| 1271 |
7" |
2.4" |
12" |
22" |
| 1272 |
7" |
2.4" |
16" |
26" |
| 1273 |
7" |
2.4" |
20" |
30" |
| 1274 |
7" |
2.4" |
24" |
33.7" |
| 1280 |
8" |
2.6" |
8" |
20" |
| 1281 |
8" |
2.6" |
12" |
23.4" |
| 1282 |
8" |
2.6" |
16" |
27.4" |
| 1283 |
8" |
2.6" |
20" |
31.3" |
| 1284 |
8" |
2.6" |
24" |
35.2" |
| 1320 |
12" |
3" |
8" |
21.1" |
| 1321 |
12" |
3" |
12" |
25" |
| 1322 |
12" |
3" |
16" |
28.9" |
| 1323 |
12" |
3" |
20" |
32.9" |
| 1324 |
12" |
3" |
24" |
36.8" |
| 1325 |
12" |
3" |
28" |
40.7" |
| 1326 |
12" |
3" |
32" |
44.7" |

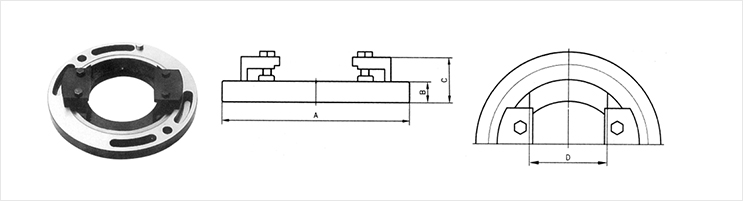

OPTIONAL SWIVEL BASE
Order Code
3140- |
A
(mm) |
B
(mm) |
C
(mm) |
D
(mm) |
Suitable
Jaw Width |
| 0401 |
180 |
20 |
43.5 |
75 |
100mm |
| 0402 |
226 |
23 |
47 |
95 |
125mm |
| 0403 |
290 |
28 |
58 |
125 |
150mm |
| 0404 |
320 |
28 |
58 |
145 |
175mm |
| 0405 |
370 |
34 |
74 |
170 |
200mm |
Order Code
3140- |
A
(inches ) |
B
(inches ) |
C
(inches ) |
D
(inches ) |
Suitable
Jaw Width(inches) |
| 0401 |
7" |
0.8" |
1.7" |
3" |
4" |
| 0402 |
9" |
0.9" |
1.9" |
3.7" |
5" |
| 0403 |
11.4" |
1.1" |
2.3" |
5" |
6" |
| 0404 |
12.6" |
1.1" |
2.3" |
5.7" |
7" |
| 0405 |
14.6" |
1.3" |
2.9" |
6.7" |
8" |
|
