英世齐 - 产品 - 平口钳 - 90 DEGREE ANGLE VICE CLAMP

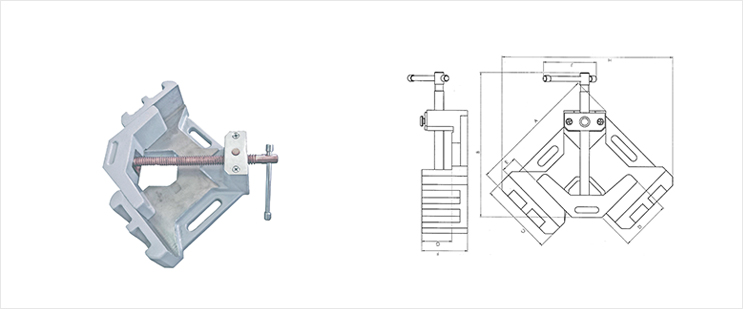

90 DEGREE ANGLE VICE CLAMP

Order code 3002-	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	G (mm)	H (mm)	J (mm)	Qty/Ctn	Packing (cm)	NW/GW (kg)
6441	200	245	100	70	75	65	34	260	130	5	40X24X25	24/26
6442	240	295	130	105	105	91	60	335	130	3	31X31X33	31/33

Order code 3002-	A (inches)	B (inches)	C (inches)	D (inches)	E (inches)	F (inches)	G (inches)	H (inches)	J (inches)
6441	8"	9.6'	4"	2.8"	3"	2.6"	1.3"	10.2"	5"
6442	9.4"	11.6"	5"	4"	4"	3.6"	2.4"	13.2"	5"
