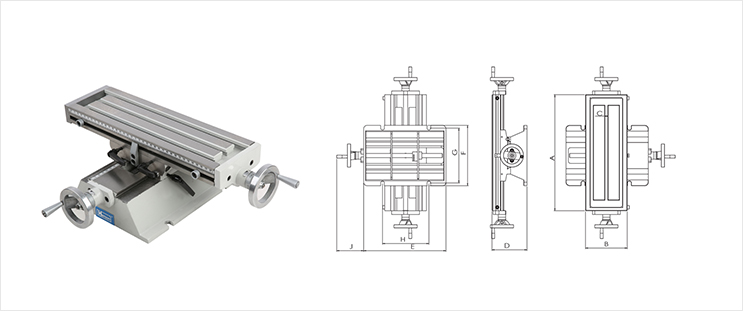

PRECISION CROSS SLIDE TABLE
Parallism:0.03/100mm
Squareness: 0.05/100mm
Order code
3002- |
A
(mm) |
B
(mm) |
C
(mm) |
D
(mm) |
E
(mm) |
F
(mm) |
G
(mm) |
H
(mm) |
J
(mm) |
X Travel
mm |
Y Travel
mm |
Qty/Ctn |
Packing
(cm) |
NW/GW
(kg) |
| 6421 |
400 |
120 |
10 |
145 |
282 |
222 |
200 |
160 |
110 |
220 |
160 |
1 |
49X38X20 |
23/27 |
| 6422 |
500 |
180 |
12 |
151 |
355 |
260 |
235 |
200 |
116 |
280 |
175 |
1 |
65X43.5X22 |
35/40 |
| 6423 |
700 |
180 |
12 |
151 |
355 |
260 |
235 |
200 |
116 |
480 |
175 |
1 |
85X43X22 |
45/50 |
Order code
3002- |
A
(inches) |
B
(inches) |
C
(inches) |
D
(inches) |
E
(inches) |
F
(inches) |
G
(inches) |
H
(inches) |
J
(inches) |
X Travel
(inches) |
Y Travel
(inches) |
| 6421 |
16" |
4.7" |
0.4" |
5.7" |
11" |
8.7" |
8" |
6" |
4.3" |
8.7" |
6" |
| 6422 |
20" |
7 |
0.5" |
6" |
14" |
10" |
9.3" |
8" |
4.6" |
11" |
7" |
| 6423 |
28" |
7 |
0.5" |
6" |
14" |
10" |
9.3" |
8" |
4.6" |
19" |
7" |
|
