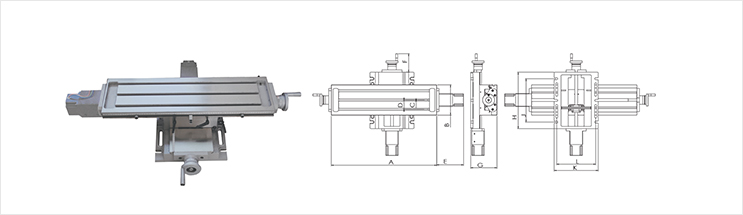

CNC CROSS SLIDE TABLE WITH STEPPER MOTOR
3N.m/425OZ.in-motor
Order code
3002- |
A
(mm) |
B
(mm) |
C
(mm) |
D
(mm) |
E
(mm) |
F
(mm) |
G
(mm) |
H
(mm) |
J
(mm) |
K
(mm) |
L
(mm) |
X Travel
mm |
Y Travel
mm |
Qty/Ctn |
Packing
(cm) |
NW/GW
(kg) |
| 6431 |
425 |
240 |
10 |
72 |
182 |
128 |
177 |
335 |
250 |
275 |
240 |
225 |
150 |
1 |
65X55X24 |
52/55 |
| 6432 |
600 |
240 |
12 |
72 |
182 |
128 |
177 |
335 |
250 |
275 |
240 |
400 |
150 |
1 |
87X55X24 |
60/55 |
| 6433 |
730 |
210 |
12 |
64 |
186 |
128 |
182 |
390 |
300 |
300 |
270 |
500 |
210 |
1 |
100X66X24 |
80/88 |
Order code
3002- |
A
(inches) |
B
(inches) |
C
(inches) |
D
(inches) |
E
(inches) |
F
(inches) |
G
(inches) |
H
(inches) |
J
(inches) |
K
(inches) |
L
(inches) |
X Travel
(inches) |
Y Travel
(inches) |
| 6431 |
17" |
9.4" |
0.4" |
2.8" |
7.2" |
5" |
7" |
13" |
10" |
11" |
9.4" |
9" |
6" |
| 6432 |
24" |
9.4" |
0.5" |
2.8" |
7.2" |
5" |
7" |
13" |
10" |
11" |
9.4" |
16" |
6" |
| 6433 |
29" |
8.3" |
0.5" |
2.5" |
7.3" |
5" |
7.2" |
15.4" |
12" |
12" |
10.6" |
20" |
8" |
|
