LB-TSL HORIZONTAL & VERTICAL ROTARY TABLE
Order Code
3002- |
3002-6201 |
3002-6202 |
3002-6203 |
3002-6204 |
3002-6205 |
3002-6206 |
| Diameter of table (mm) |
76 |
110 |
127 |
150 |
200 |
250 |
| Morse taper of the center hole |
2# |
2# |
2# |
2# |
3# |
3# |
| Height of center for verti.mounting (mm) |
59 |
81.5 |
90 |
100 |
150 |
170 |
| Width of the T-slot (mm) |
8 |
12 |
12 |
12 |
12 |
12 |
| Adjacent angle of table T-slot |
90o |
120o |
120o |
90o |
90o |
60o |
| Width of locating key (mm) |
12 |
12 |
12 |
14 |
14 |
14 |
| Module of the worm gear |
1 |
1 |
1 |
1 |
1.75 |
2 |
| Transmission ratio of worm gear |
1:36 |
1:72 |
1:72 |
1:90 |
1:90 |
1:90 |
| Graduation of the table |
360o |
360o |
360o |
360o |
360o |
360o |
| Rotating angle of table with revolution of the worm |
10o |
5o |
5o |
4o |
4o |
4o |
| Minimum reading of the vernier |
10' |
10' |
10' |
10' |
10' |
10' |
| Indexing accuracy |
120' |
120' |
120' |
60' |
60' |
60' |
| Max. bearing(with table horizontal) kgs |
50 |
60 |
80 |
100 |
150 |
200 |
| Max.bearing(with table vertical) kgs |
25 |
30 |
40 |
50 |
75 |
100 |
| Packing size (cm) |
260x180x140 |
290x220x150 |
340x250x160 |
340x250x160 |
340x350x180 |
390x360x200 |
| G.W. (kgs) |
5.5 |
9 |
10.6 |
13.5 |
25.5 |
38 |
| N.W. (kgs) |
5 |
8.3 |
9.6 |
12.5 |
24.5 |
32 |
Order Code
3002- |
3002-6201 |
3002-6202 |
3002-6203 |
3002-6204 |
3002-6205 |
3002-6206 |
| Diameter of table (inches) |
3" |
4" |
5" |
6" |
8" |
10" |
| Morse taper of the center hole |
2# |
2# |
2# |
2# |
3# |
3# |
| Height of center for verti.mounting (inches) |
2.3" |
3.2" |
3.5" |
4" |
6" |
6.7" |
| Width of the T-slot (inches) |
0.3" |
0.5" |
0.5" |
0.5" |
0.5" |
0.5" |
| Adjacent angle of table T-slot |
90o |
120o |
120o |
90o |
90o |
60o |
| Width of locating key (inches) |
0.5" |
0.5" |
0.5" |
0.6" |
0.6" |
0.6" |
| Module of the worm gear |
1 |
1 |
1 |
1 |
1.75 |
2 |
| Transmission ratio of worm gear |
1:36 |
1:72 |
1:72 |
1:90 |
1:90 |
1:90 |
| Graduation of the table |
360o |
360o |
360o |
360o |
360o |
360o |
| Rotating angle of table with revolution of the worm |
10o |
5o |
5o |
4o |
4o |
4o |
| Minimum reading of the vernier |
10' |
10' |
10' |
10' |
10' |
10' |
| Indexing accuracy |
120' |
120' |
120' |
60' |
60' |
60' |
| Max. bearing(with table horizontal) lb |
110 |
132 |
176 |
220 |
330 |
441 |
| Max.bearing(with table vertical) lb |
55 |
66 |
88 |
110 |
165 |
220 |

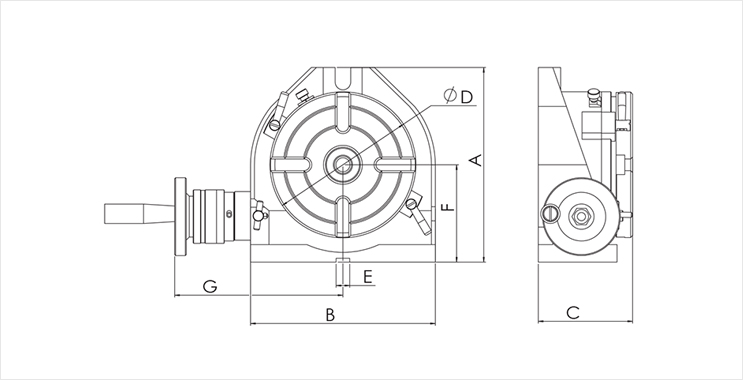

ROTARY TABLE INSTALLATION DIMENSIONS
Order Code
3002- |
A
(mm) |
B
(mm) |
C
(mm) |
D
(mm) |
E
(mm) |
F
(mm) |
G
(mm) |
| 6201 |
98 |
115 |
75 |
76 |
12 |
60 |
130 |
| 6202 |
145 |
150 |
75 |
110 |
12 |
85 |
140 |
| 6203 |
155 |
170 |
80 |
127 |
12 |
90 |
145 |
| 6204 |
200 |
190 |
81 |
150 |
14 |
100 |
160 |
| 6205 |
285 |
236 |
100 |
200 |
14 |
150 |
210 |
| 6206 |
328 |
286 |
110 |
250 |
14 |
170 |
240 |

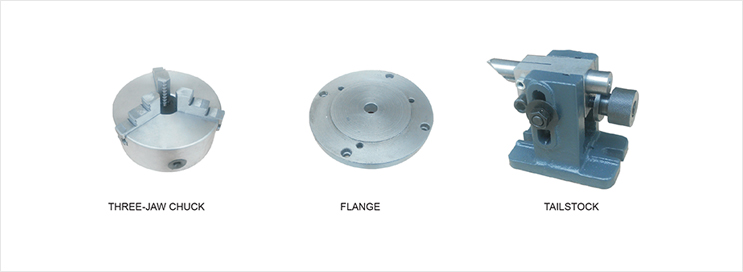

OPTIONAL ACCESSORIES
|
