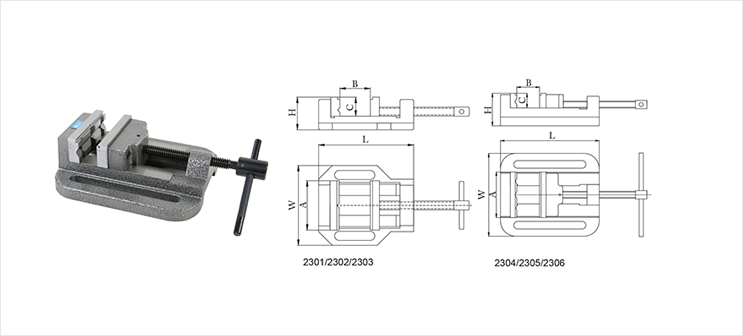

DRILLING MACHINE VICE
Parallism:0.15mm
Squareness:0.03mm
Order code
3132- |
Width of jaw A
(mm) |
Max opening B
(mm) |
Height of jaw C
(mm) |
Length of vice L
(mm) |
Width of vice W
(mm) |
Height of vice H
(mm) |
Packing
(cm) |
G.W/N.W
(kg) |
| 2301 |
65 |
>60 |
25 |
125 |
105 |
44 |
17x11x5 |
1.5/1.3 |
| 2302 |
80 |
>84 |
25 |
150 |
130 |
46 |
20x13x5 |
2/1.9 |
| 2303 |
100 |
>90 |
25 |
170 |
177 |
55 |
28x18x6 |
3.5/3.4 |
| 2304 |
80 |
>80 |
38.5 |
199 |
139 |
71 |
25x14x8 |
5/4.6 |
| 2305 |
100 |
>95 |
38.5 |
218 |
181 |
74 |
27x18x8 |
7.5/7 |
| 2306 |
120 |
>108 |
38.5 |
260 |
218 |
85.5 |
33x22x9 |
12/11.6 |
| 2307 |
140 |
>150 |
38.5 |
301 |
226 |
87 |
36x23x9 |
13/12.6 |
Order code
3132- |
Width of jaw A
(inches) |
Max opening B
(inches) |
Height of jaw C
(inches) |
Length of vice L
(inches) |
Width of vice W
(inches) |
Height of vice H
(inches) |
| 2301 |
2.6" |
>2.4" |
1" |
5" |
4.1" |
1.7" |
| 2302 |
3" |
>3.3" |
1" |
6" |
5.1" |
1.8" |
| 2303 |
4" |
>3.5" |
1" |
6.7" |
7" |
2.2" |
| 2304 |
3" |
>3.2" |
1.5" |
7.8" |
5.5" |
2.8" |
| 2305 |
4" |
>3.7" |
1.5" |
8.6" |
7" |
3" |
| 2306 |
4.7" |
>4.3" |
1.5" |
10.2" |
8.6" |
3.4" |
| 2307 |
5.5" |
>6" |
1.5" |
12" |
9" |
3.4" |
|
